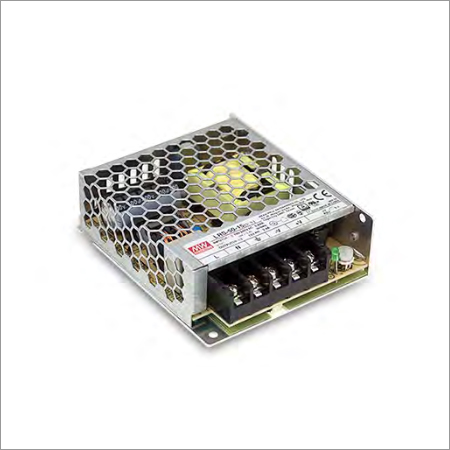

50W Single Output Led Smps

50W Single Output Led Smps
50W Single Output Led Smps
Send Inquiry
Product Code : LRS-50 Series
Product Description

We have gained the market expertise and experience to supply and trade an extensive range of 50W Single Output Switching Power Supply. It contains top notch integrated circuits, resistor, transistor and other such components. Therefore, the offered power supplier can deliver uninterrupted output for the prolong duration. 50W Single Output Switching Power Supply is packed in special damage free packaging material in order to ensure its tamper free transportation.

LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-50 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to easily meet the worldwide energy requirement. LRS-50 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-50 series serves as a high price-to- performance power supply solution for various industrial applications.

Features :

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 second
  • No load power consumption<0.2W
  • Miniature size and 1U low profile
  • High operating temperature up to 70℃
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
  • Operating altitude up to 5000 meters (Note.8)
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • Over voltage category Ⅲ
  • 100% full load burn-in test
  • 3 years warranty

Applications :

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances

Specifications :

Model


LRS-50-3.3

LRS-50-5

LRS-50-12

LRS-50-15

LRS-50-24

LRS-50-36

LRS-100-48

Output

DC VOLTAGE

3.3V

5V

12V

15V

24V

36V

48V

RATED CURRENT

10A

10A

4.2A

3.4A

2.2A

1.45A

1.1A

CURRENT RANGE

0 ~ 10A

0 ~ 10A

0 ~ 4.2A

0 ~ 3.4A

0 ~ 2.2A

0 ~ 1.45A

0 ~ 1.1A

RATED POWER

33W

50W

50.4W

51W

52.8W

52.2 W

52.8W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

2.97 ~ 3.6V

4.5 ~ 5.5V

10.2 ~ 13.8V

13.5 ~ 18V

21.6 ~ 28.8V

32.4 ~ 39.6V

43.2 ~ 52.8V

VOLTAGE TOLERANCE Note.3

+3.0%

±2.0%

+1.0%

+1.0%

+1.0%

+1.0%

+1.0%

LINE REGULATION Note.4

+0.5%

±0.5%

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

LOAD REGULATION Note.5

+2.0%

±1.0%

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

SETUP, RISE TIME

1000ms, 30ms/230VAC, 2000ms,30ms/115VAC at full load

HOLD UP TIME (Typ.)

30ms/230VAC, 12ms/115VAC at full load

Input

VOLTAGE RANGE

85 ~ 264VAC, 120 ~ 373VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

80%

83%

86%

88%

88%

89%

90%

AC CURRENT (Typ.)

0.95A/115VAC 0.56A/230VAC

INRUSH CURRENT (Typ.)

COLD START 45A/230VAC

LEAKAGE CURRENT

<0.75mA / 240VAC

Protection

OVER LOAD

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

3.8~4.45V

5.9~ 7.3V

13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~46.8V

55.2~64.8V

Protection type : Shut down o/p voltage, re-power on to recover

Environmnet

WORKING TEMP.

-30 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes


OVER VOLTAGE CATEGORY

III; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters

Safety

SAFETY STANDARDS

UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB) approved

WITHSTAND VOLTAGE

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020

Others

MTBF

645K hrs min. MIL-HDBK-217F (25℃)

DIMENSION

99*82*30mm (L*W*H)

PACKING

0.23Kg; 60pcs/14.8Kg/0.88CUFT

Note :

  • All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  • Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  • Tolerance : includes set up tolerance, line regulation and load regulation.
  • Line regulation is measured from low line to high line at rated load.
  • Load regulation is measured from 0% to 100% rated load.
  • Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
  • 3.3V,5V when the load factor 0~50%, the switching power less is reduced by burst operation, which will cause ripple and ripple noise to go beyond the specifications.
  • The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
  • The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets
  • EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies."
