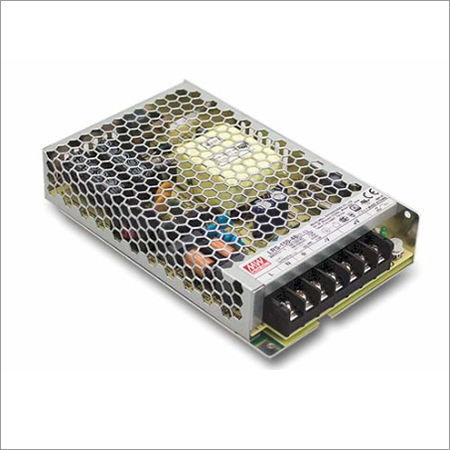

150W Single Output Led Smps

150W Single Output Led Smps
150W Single Output Led Smps
Send Inquiry
Product Code : LRS-150 Series
Product Description

LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-150F has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150F series serves as a high price-to- performance power supply solution for various industrial applications.

Features :

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 second
  • No load power consumption<0.5W
  • Miniature size and 1U low profile
  • High operating temperature up to 70℃
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Compliance to IEC/EN 60335-1(PD3) and
  • IEC/EN61558-1, 2-16 for household appliances
  • Operating altitude up to 5000 meters
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • Over voltage category III
  • 100% full load burn-in test
  • 3 years warranty

Applications :

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances :

Specifications :

Model


LRS-150F-5

LRS-150F-12

LRS-150F-15

LRS-150F-24

LRS-150F-36

LRS-150F-48

Output

DC VOLTAGE

5V

12V

15V

24V

36V

48V

RATED CURRENT

22A

12.5A

10A

6.5A

4.3A

3.3A

CURRENT RANGE

0 ~ 22A

0 ~ 12.5A

0 ~ 10A

0 ~ 6.5A

0 ~ 4.3A

0 ~ 3.3A

RATED POWER

110W

150W

150W

156W

154.8W

158.4W

RIPPLE & NOISE (max.) Note.2

100mVp-p

150mVp-p

150mVp-p

200mVp-p

200mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

4.5 ~ 5.5V

10.2 ~ 13.8V

13.5 ~ 18V

21.6 ~ 28.8V

32.4 ~ 39.6V

43.2 ~ 52.8V

VOLTAGE TOLERANCE Note.3

+2.0%

+1.0%

+1.0%

+1.0%

+1.0%

+1.0%

LINE REGULATION Note.4

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

LOAD REGULATION Note.5

+1.0%

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

SETUP, RISE TIME

1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC 12ms/115VAC at full load

Input

VOLTAGE RANGE

90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

85%

87.5%

89%

89%

89%

90%

AC CURRENT (Typ.)

6.8A/115VAC 3.4A/230VAC

INRUSH CURRENT (Typ.)

60A/115VAC 60A/230VAC

LEAKAGE CURRENT

<2mA / 240VAC

Protection

OVER LOAD

110 ~ 140% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16.2V

18.75 ~ 21.75V

28.8 ~ 33.6V

41.4 ~ 48.6V

55.2 ~ 64.8V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover

Environment

WORKING TEMP.

-30 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

+0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes


OVER VOLTAGE CATEGORY

III; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters

Safety

SAFETY STANDARDS

UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 /- 2 - 16 ,CCC GB4943 .1, BSMI CNS14336-1, EAC TP TC004, AS/NZS 60950.1(by CB) approved

WITHSTAND VOLTAGE

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2 Class A(≤80% Load ),EN61000-3-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020

Others

MTBF

648.6K hrs min. MIL-HDBK-217F (25℃)

DIMENSION

159*97*30mm (L*W*H)

PACKING

0.48Kg ; 30pcs/15.4Kg/0.75CUFT

Note :

  • All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  • Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  • Tolerance : includes set up tolerance, line regulation and load regulation.
  • Line regulation is measured from low line to high line at rated load.
  • Load regulation is measured from 0% to 100% rated load.
  • Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
  • The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets
  • EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.
  • The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m (6500ft).
