100W Single Output Led Smps

100W Single Output Led Smps
100W Single Output Led Smps
Send Inquiry
Product Code : LRS-100 Series
Price And Quantity
Product Specifications
  • Output Power
  • 100W Watt (w)
Product Description

Our firm is a reliable entity in this domain, involved in trading, distributing and supplying a wide variety of 100W Single Output Switching Power Supply. It is precisely designed at our vendors end by using high grade components and pioneering techniques as per the set industry standards. The offered 100W Single Output Switching Power Supply is appreciated for its high efficiency, high reliability, sturdy constructions and low cost.

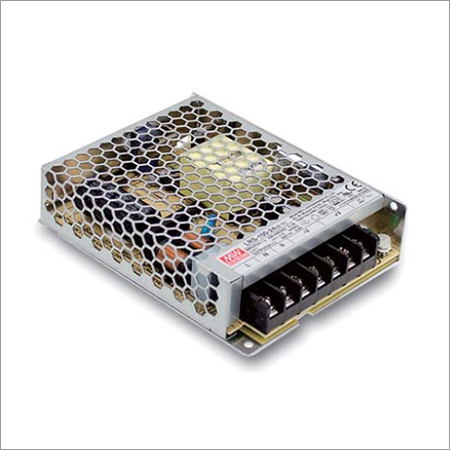

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series serves as a high price-to- performance power supply solution for various industrial applications.

Features :

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 second
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Miniature size and 1U low profile
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
  • Operating altitude up to 5000 meters (Note.7)
  • Withstand 5G vibration test
  • LED indicator for power on
  • No load power consumption<0.3W
  • Over voltage category Ⅲ
  • 100% full load burn-in test
  • High operating temperature up to 70℃
  • High efficiency, long life and high reliability
  • 3 years warranty

Applications :

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances

Specifications :

Model


LRS-100-3.3

LRS-100-5

LRS-100-12

LRS-100-15

LRS-100-24

LRS-100-36

LRS-100-48

Output

DC VOLTAGE

3.3V

5V

12V

15V

24V

36V

48V

RATED CURRENT

20A

18A

8.5A

7A

4.5A

2.8A

2.3A

CURRENT RANGE

0 ~ 20A

0 ~ 18A

0 ~ 8.5A

0 ~ 7A

0 ~ 4.5A

0 ~ 2.8A

0 ~ 2.3A

RATED POWER

66W

90W

102W

105W

108W

100.8W

110.4W

RIPPLE & NOISE (max.) Note.2

100mVp-p

100mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

2.97 ~ 3.6V

4.5 ~ 5.5V

10.2 ~ 13.8V

13.5 ~ 18V

21.6 ~ 28.8V

32.4 ~ 39.6V

43.2 ~ 52.8V

VOLTAGE TOLERANCE Note.3

+3.0%

+2.0%

+1.0%

+1.0%

+1.0%

+1.0%

+1.0%

LINE REGULATION Note.4

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

LOAD REGULATION Note.5

+2.0%

+1.0%

+0.5%

+0.5%

+0.5%

+0.5%

+0.5%

SETUP, RISE TIME

500ms, 30ms/230VAC, 500ms,30ms/115VAC at full load

HOLD UP TIME (Typ.)

55ms/230VAC, 10ms/115VAC at full load

Input

VOLTAGE RANGE

85 ~ 264VAC, 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

84%

86%

88%

88.5%

90%

90.5%

91%

AC CURRENT (Typ.)

1.9A/115VAC, 1.2A/230VAC

INRUSH CURRENT (Typ.)

COLD START, 50A/230VAC

LEAKAGE CURRENT

<0.75mA / 240VAC

Protection

OVER LOAD

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

3.8~4.45V

5.75~6.75V

13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~46.8V

55.2~64.8V

Protection type : Shut down o/p voltage, re-power on to recover

Environment

WORKING TEMP.

-30 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes


OVER VOLTAGE CATEGORY

III; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters

Safety

SAFETY STANDARDS

UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 /- 2 - 16 ,CCC GB4943 .1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB) approved

WITHSTAND VOLTAGE

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020

Others

MTBF

720.6K hrs min. MIL-HDBK-217F (25℃)

DIMENSION

129*97*30mm (L*W*H)

PACKING

0.34Kg ; 40pcs/14.6Kg/0.92CUFT

Note :

  • All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  • Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  • Tolerance : includes set up tolerance, line regulation and load regulation.
  • Line regulation is measured from low line to high line at rated load.
  • Load regulation is measured from 0% to 100% rated load.
  • Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
  • The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
  • The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets
  • EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.
